Slide Top Operating Table
This best-in-class top slide top provides unrivaled 360 kg (800 lbs) articulated weight capacity in any position coupled with more top slide than any other table.

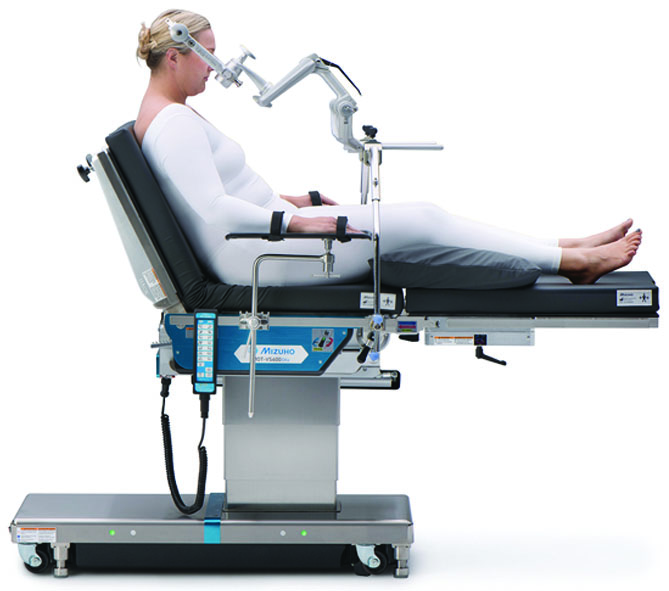

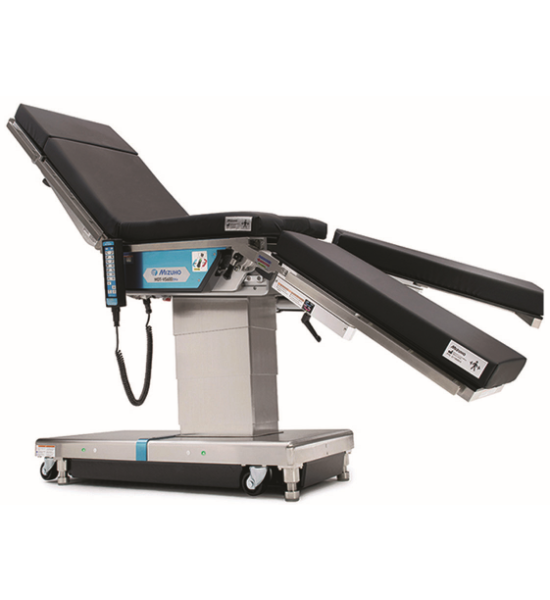

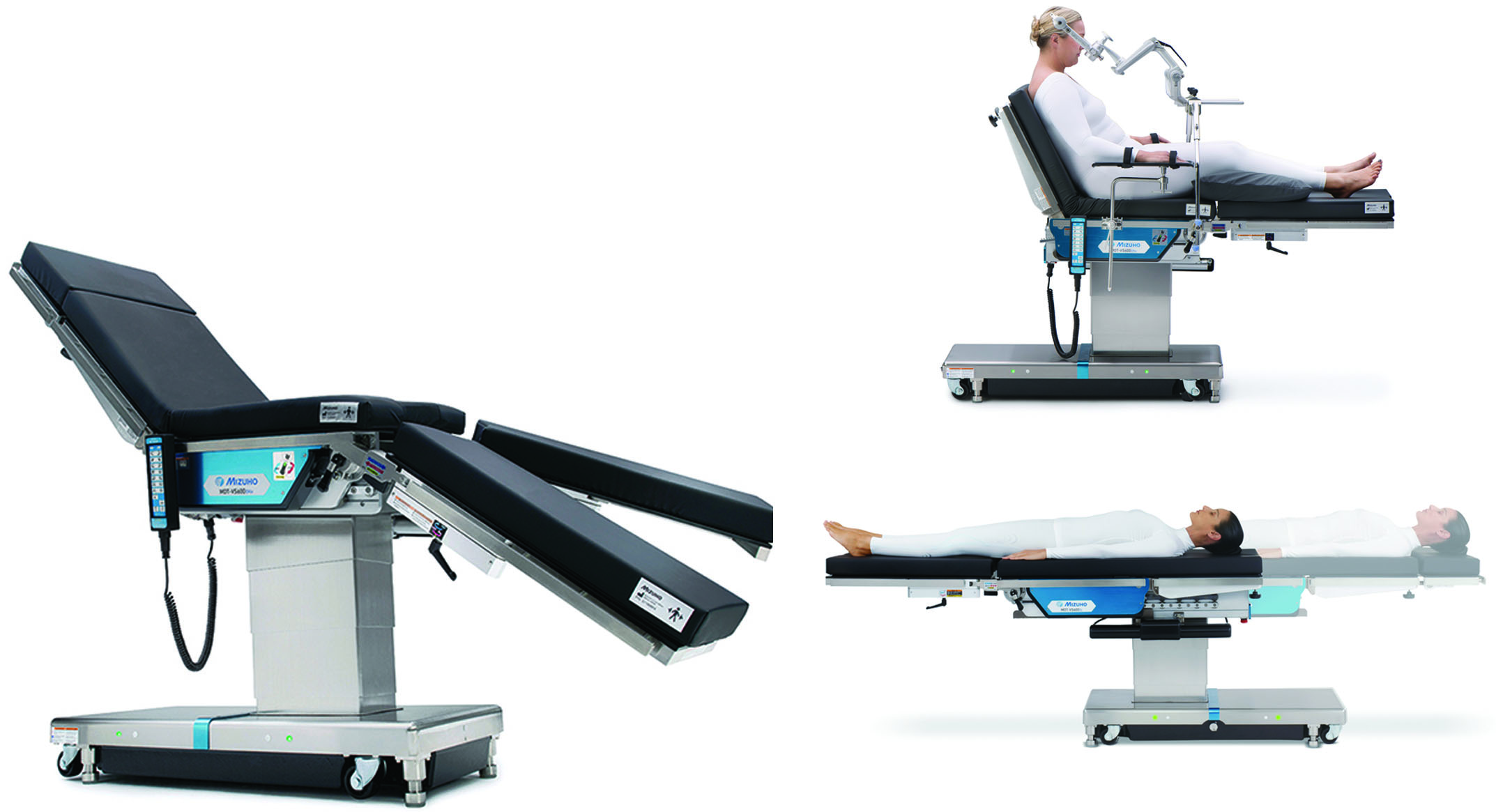

The MOT-VS600 Slide Top Operating Table provides the weight capacity, articulation, and height capabilities needed for any patient or procedure. With its best in class 360 kg (800 lbs.) articulated weight capacity, you can take full advantage of 35° tilt and 40° Trendelenburg along with the lowest height, and most top slide of any general surgical table.
The MOT-VS600 is the ideal choice for multi-surgical disciplines including those where imaging, laparoscopic, or endoscopic techniques are required.
Elevation range (low) 100–52cm (39.4–20.5”)
Elevation range (high) 106–58cm (41.7–22.8”)
Trendelenburg 30° head up / 40° head down
Lateral tilt 35° (left/right)
Back section 90° up, 40° down

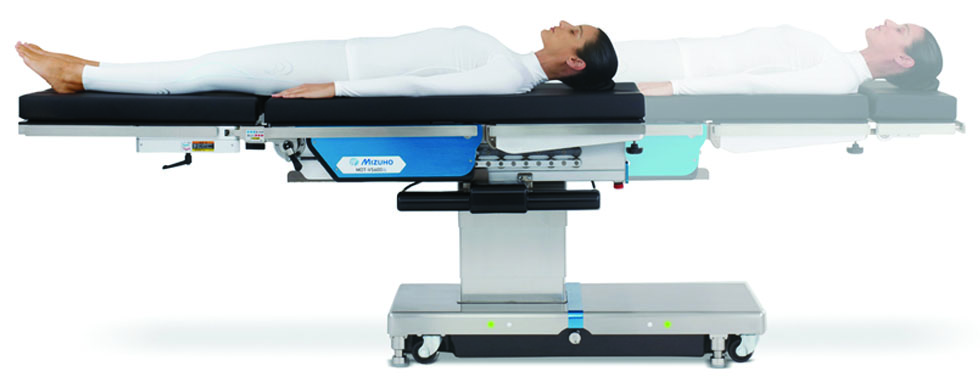

Table top sliding range 66.5cm (26.2”)
Sliding range to head 25cm (19.8”)
Sliding range to leg 41.5cm (16.3”)
Flex/reflex 40° / 90°
Return to level Trendelenburg, lateral tilt, back section, flex
Head section (manual) 60° up, 90° down
Leg section 50° first joint, 40° second joint, 90° down
Kidney bridge range 0–15cm (0–5.9”)
Table top dimensions 212cm x 50cm (83.6” x 19.7”)
Base dimensions 113cm x 48cm (44.5” x 18.9”)
Size of side rail 10mm x 25mm (3.9” x 9.8”)
Table weight 390–410kg (860–904lbs)
Supply voltage AC 100–240V (50/60Hz)
Power input 450VA
Battery power DC 24V
Operating voltage DC 24V
Patient weight capacity 450kg (1,000lbs)
Fully articulated weight capacity 360kg (800lbs)
