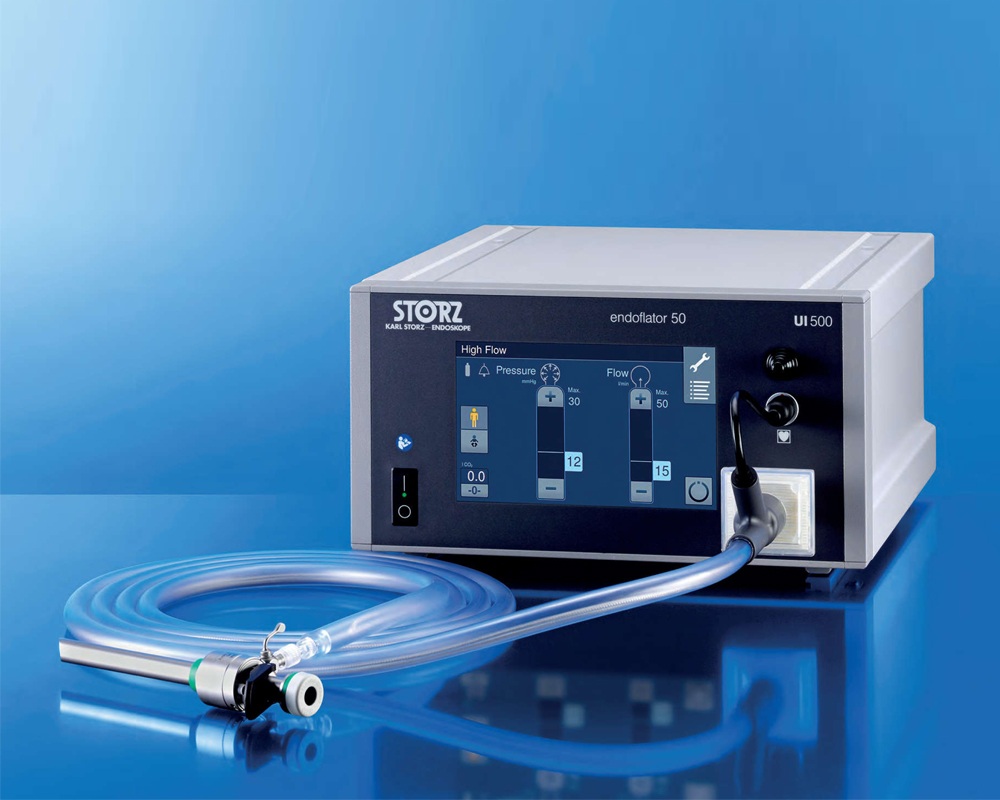

ENDOFLATOR® 50

Endoscopy World Laparoscopy

Gas flow up to 50 l/min in combination with KARL STORZ HICAP® trocars
Gas heating to body temperature
With two insufflation modes for high flow and pediatric applications
Pediatrics mode: small adjustment increments in the lower output range as well as safety limits for pressure and flow
Used in transanal treatment and endoscopic vessel harvesting
Compatible with S-PILOT® – the solution for your surgical smoke management

With a maximum flow of 50 l/min, the ENDOFLATOR® 50 rapidly creates a stable working cavity

•The heating element warms the CO2 gas to a body temperature of 37° C

•The SECUVENT® safety system ensures that overpressure is immediately detected and excess gas is released

•Maximum flow and pressure can be preset to suit the needs of specific patients and procedures

•Gas on / off

•Choice between HIGH FLOW / SENSITIVE mode

•Flow control:– SENSITIVE: 0.5 / 2 / 10 l/min– HIGH FLOW: 2 / 20 / 50 l/min

•Pressure control:– SENSITIVE: 5 / 8 / 10 / 12 mmHg– HIGH FLOW: 8 / 10 / 12 / 15 mmHg

•Volume reset
