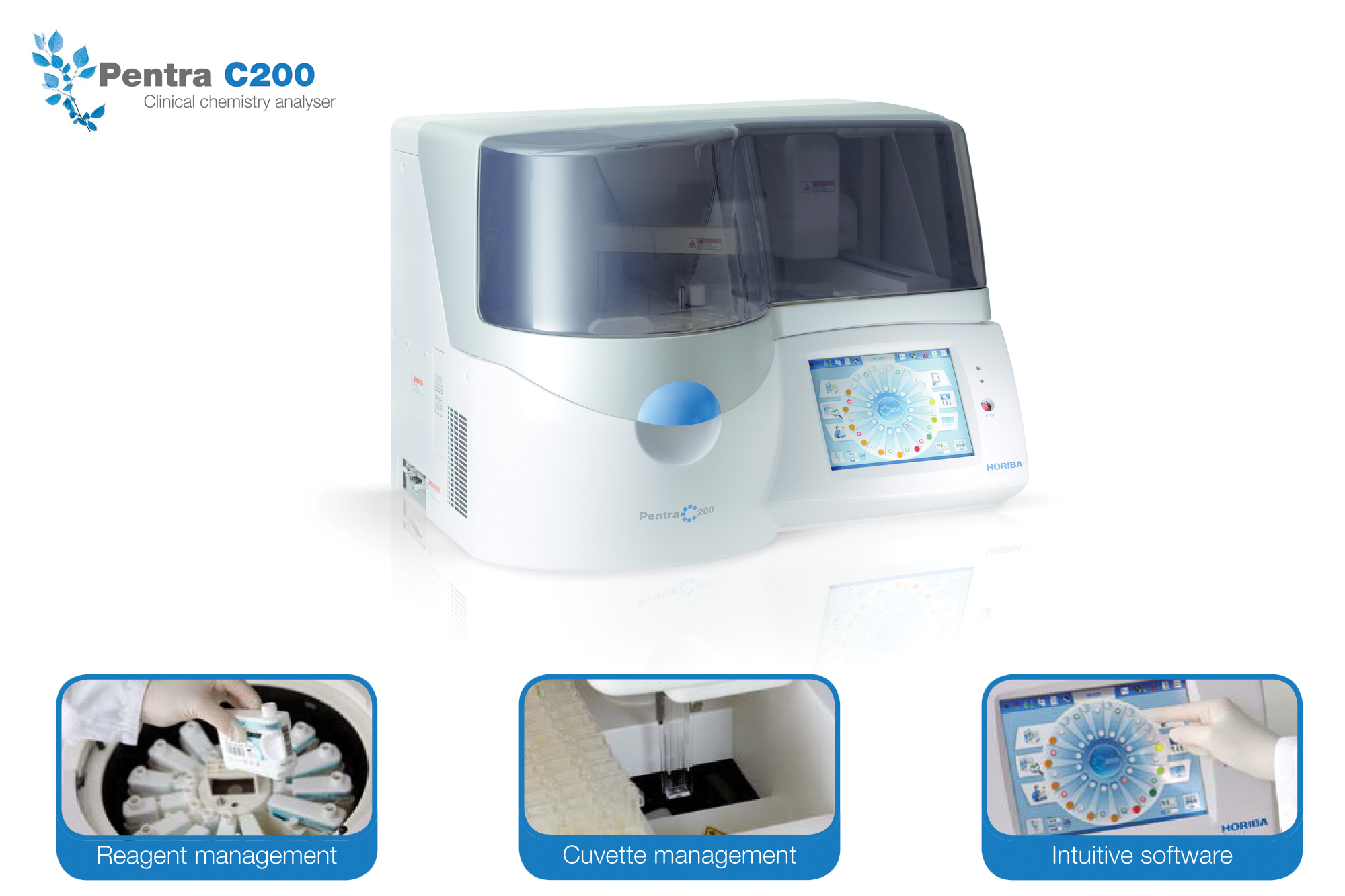

Pentra C 200
- Category: Biochemistry
- Sub Category: Clinical Chemistry Analyzer
Brand:
Product Description
- A high degree of automation, ergonomics and quality of results in one compact bench top analyser
- User friendly interface via ergonomic and intuitive software providing all the functions you need
- Proven technology delivering the best quality of result
Overview
- Fixed cycles provide continuous throughput of 90 colourimetric tests/hour
- Optional high throughput ISE module (270 tests/hour)
- Reagent management with unique "Pentra" cassette
- Fully automatic cuvette management - 2 racks of 96 single use cuvettes
- Dedicated waste compartment for used cuvettes and contaminated liquid
- Integrated computer and cooling unit (Peltier)
Product Description
- Analysis Method Types:
- Spectrophotometry: Colorimetry and Turbidimetry
- Potentiometry: Direct (Serum or Plasma) and Indirect (Urine)
- 15 parameters per reagent tray
- Optional ISE Module (Na+, K+, Cl-)
- Maximum Throughput: up to 360 test/h (140 tests/h in standard configuration)
- CE Marked
Physical
| System Size | 75.5 cm x 72.5 cm x 57 cm (W x L x H) |
| System Weight | 95 Kg |
| Printer | Optional Laser printer |
| Sound level | < 60 dBa |
| Operating temperature | from 15 to 30°C |
| Operating Humidity | from 45% to 85% |
| Total Power Requirements | 600 VA |
| Water | De-ionized/Distilled Water - 10L Tank |
| Water specifications | Resistivity > 5 MegOhms Conductivity < 0.2 µS/cm |
Computer & Sofware
| Operating system | Windows XP |
| Data processing | 10.4” inch Color LCD Touch Screen Database Capacity: 100,000 results Processor: 400 MHz RC 232C: Patient results, QC to LIS with ASTM protocol |
| Intuitive and ergonomic software | |
| Quality Control Management | Levey Jennings, statistics, lot number management and 10 Westgard rules |
| Logs with multi level security access | |
| Automatic user functions | Programmable wake-up function Maintenance workhour table Automated maintenance process |
| Export of archived data | USB key in Microsoft Excel format |
| Audible alarms | |
| Interactive Help |
HTML Format |
