HEMATOLOGY ANALYZER
...
Hematology Analyzer

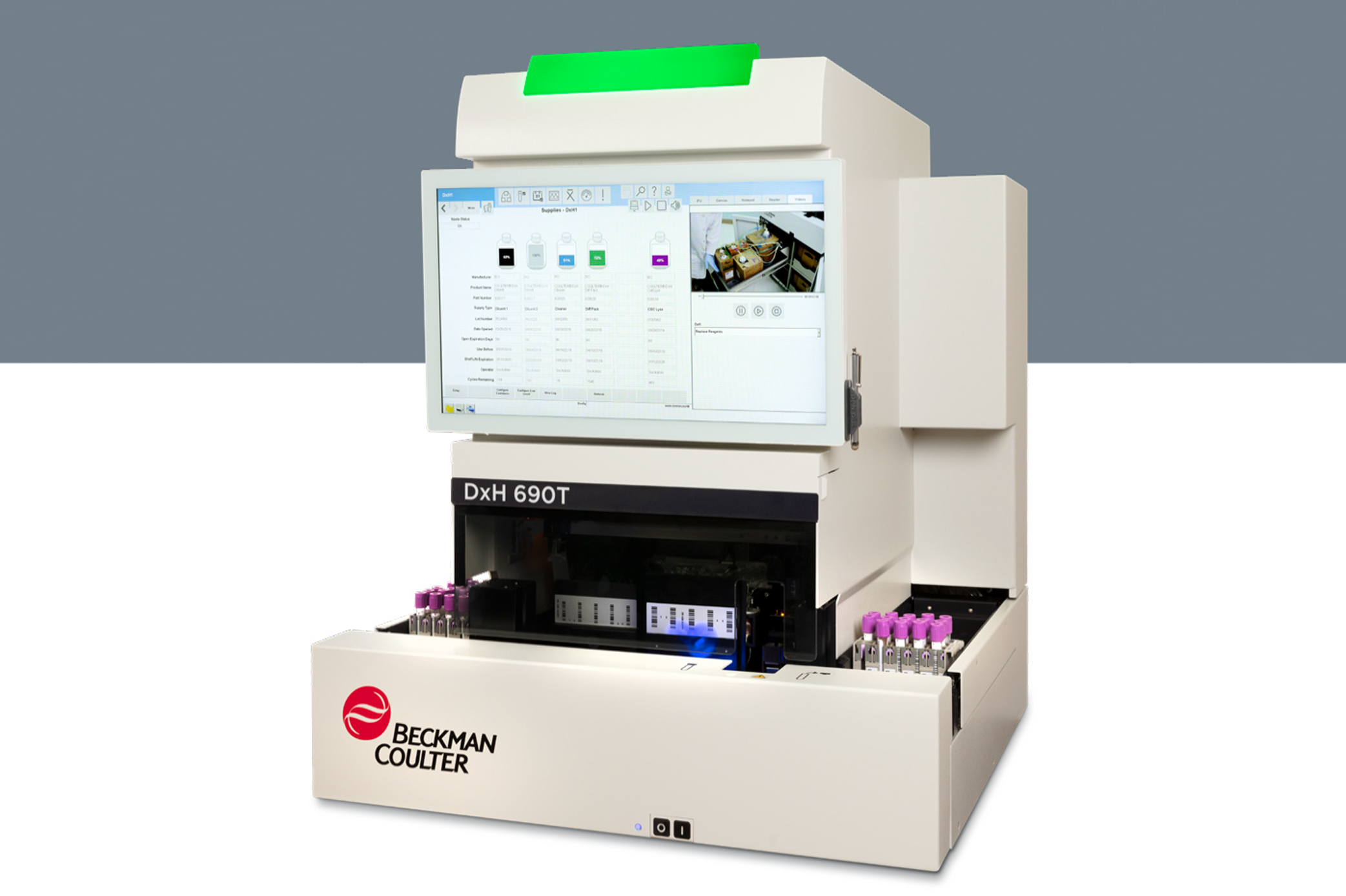

DxH 690T

Trusted Quality for Mid-Volume Labs

The DxH 690T is a benchtop hematology analyzer that delivers trusted results

for mid-volume labs. With this table-top configuration, you can count on

best-in-class hematology technology, minimal slide reviews, maximum efficiency,

and significant cost savings.

Quality That Counts

Trust your results—the first time—with a high-quality benchtop hematology

analyzer that delivers precise, accurate results and advanced cellular insights.

  • Achieve superb RBC, PLT, and WBC differentials through near-native-state

cellular characterization

  • Deliver high-confidence results on the first run—minimizing reruns or reflex tests
  • Improve slide interpretations with intelligent technology that helps optimize

smearing, ensuring consistent slide quality

Productivity That Liberates

Free up your mid-size laboratory’s hematology team and empower your busy

staff to focus on samples and tasks that truly need attention.

  • Simplify workload planning with predictable hematology workflows

that let you save time for the unexpected

  • Optimize your limited resources with reliable flagging

Savings That Empower

Tap into powerful savings to help your lab devote time, budget, and resources

where they are needed most.

  • Streamline QA/QC processes through customizable, automated technology with daily reminders and remote support
  • Save time, reduce costs, and optimize hematology instrument usage with fewer reflex tests
    • Reduce hematology reagent use and associated costs
    • Reallocate up to 200 minutes of daily run-time previously spent on reflex testing
    • Reduce overhead costs like electricity and maintenance

-

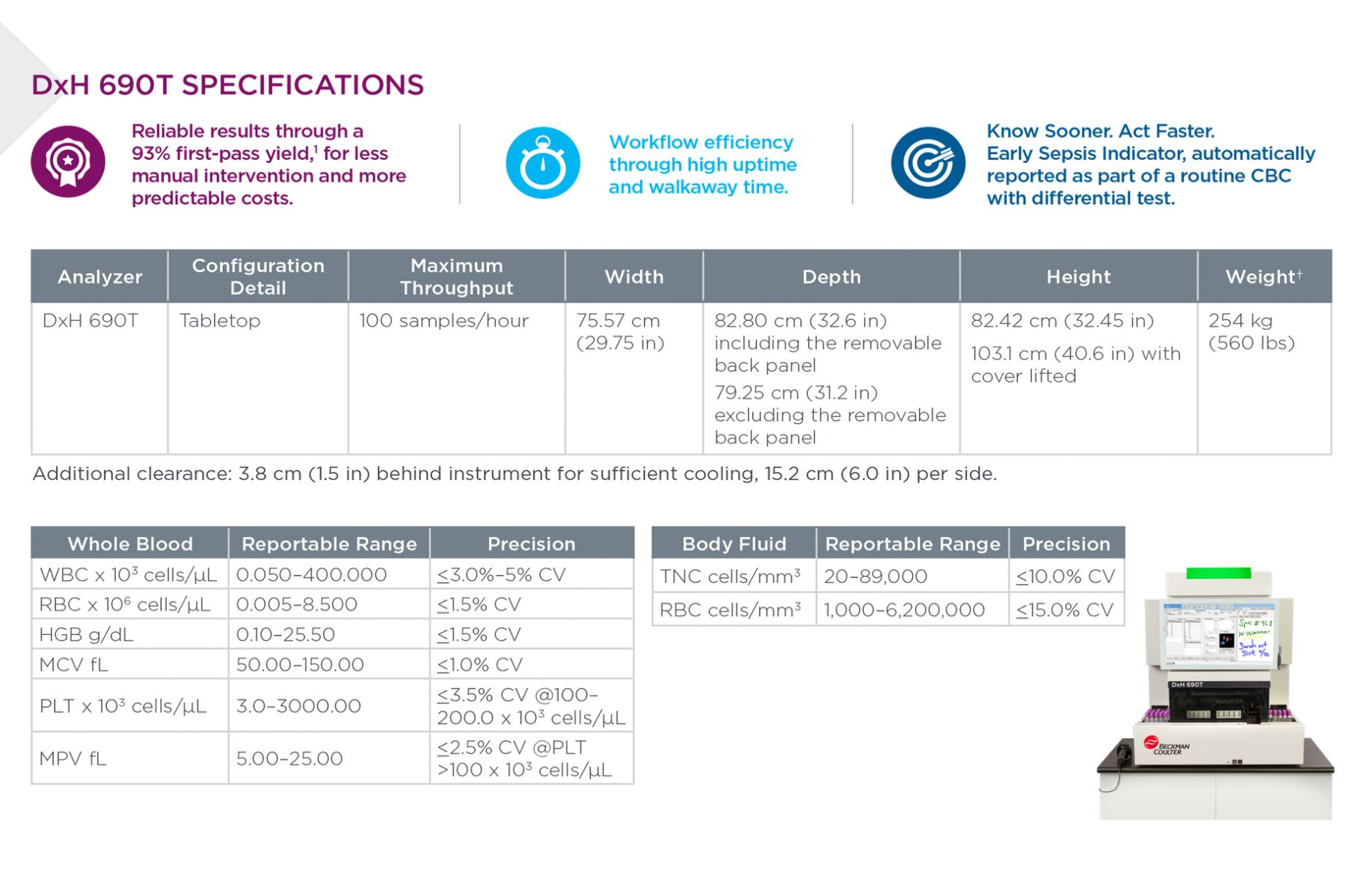

Technical Specifications
Methodology Enhanced Coulter Principle, VCS 360 with DataFusion
ParametersEmpty heading CBC: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, RDW-SD, PLT, MPV
Differential: NE%, LY%, MO%, EO%, BA%, NRBC%, NE#, LY#, MO#, EO#, BA#, NRBC #, MDW (when enabled)
Retic: RET, RET#, MRV, IRF
Body Fluids (Cerebrospinal, Serous, or Synovial): RBC, TNC
Throughput (tests per hour) Up to 100 samples/hour
Sample Volumes Whole Blood: 165 μL aspiration volume. Predilute: 50 μL whole blood into 200 μL of diluent
Analytical Measuring Ranges1 Whole Blood (CBC)
Parameters Units Analytical Measuring Range
WBC x103 cells/μL 0.050–400.000
RBC x106 cells/μL 0.005–8.500
HGB g/dL 0.10–25.50
MCV fL 50.00–150.00
RDW % 10.00–40.00
RDW-SD fL 15.00–150.00
PLT x103 cells/μL 3.0–3000.0
MPV fL 5.00–25.00
Body Fluids
TNC cells/mm3 20–89,000
RBC cells/mm3 1,000–6,200,000
Data Management Up to 50,000 patient results with histograms, scatter plots, and demographics
100,000 patient results with graphics for power computer
Quality Assurance QC with Levy-Jennings graph; XB/XM for moving averages, daily check,
intelligent quality monitoring, MRV, IRF, customizable calibration and QC reminders and alerts, auto export of QC
Acoustic Noise Level ≤ 60 dBa
Radio Frequency and Interference Immunity Meet the product level standards EN 61326-1 (Electrical Equipment for Measurement, Control, and Laboratory Use—EMC Requirements), and EN 61326-2-6 (Part 2, Specific Requirements for In-Vitro Diagnostic Devices)
Power Consumption DxH 690T SPM: 520 W (1775 BTU/hour), Monitor: 35 W (120 BTU/hour), DxH Power Computer: 160 W (546 BTU/hour)
Dimensions and weight2 Width Height Depth Weight
76.2 cm (30 in.) 90.17 cm (35.5 in.),
with cover closed
83.82 cm (33 in.), including the removable back panel ~141.97 kg (313 lbs.),
including monitor
113.03 cm (44.5 in.), with cover open 80 cm (31.5 in.), excluding the removable back panel ~136.98 kg (302 lbs.),excluding monitor
Additional Clearance 15.2 cm (6.0 in.) per side of instrument for troubleshooting; 3.8 cm (1.5 in.) behind instrument for sufficient cooling
...
